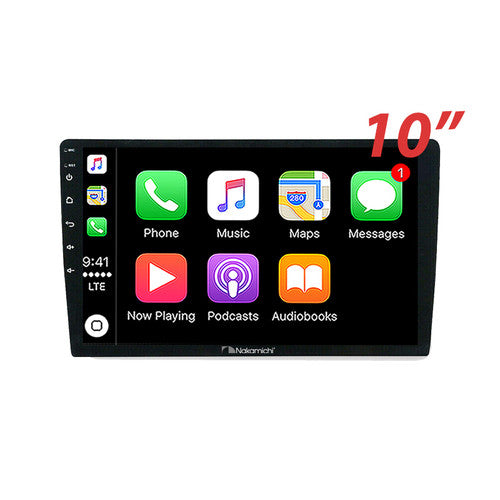

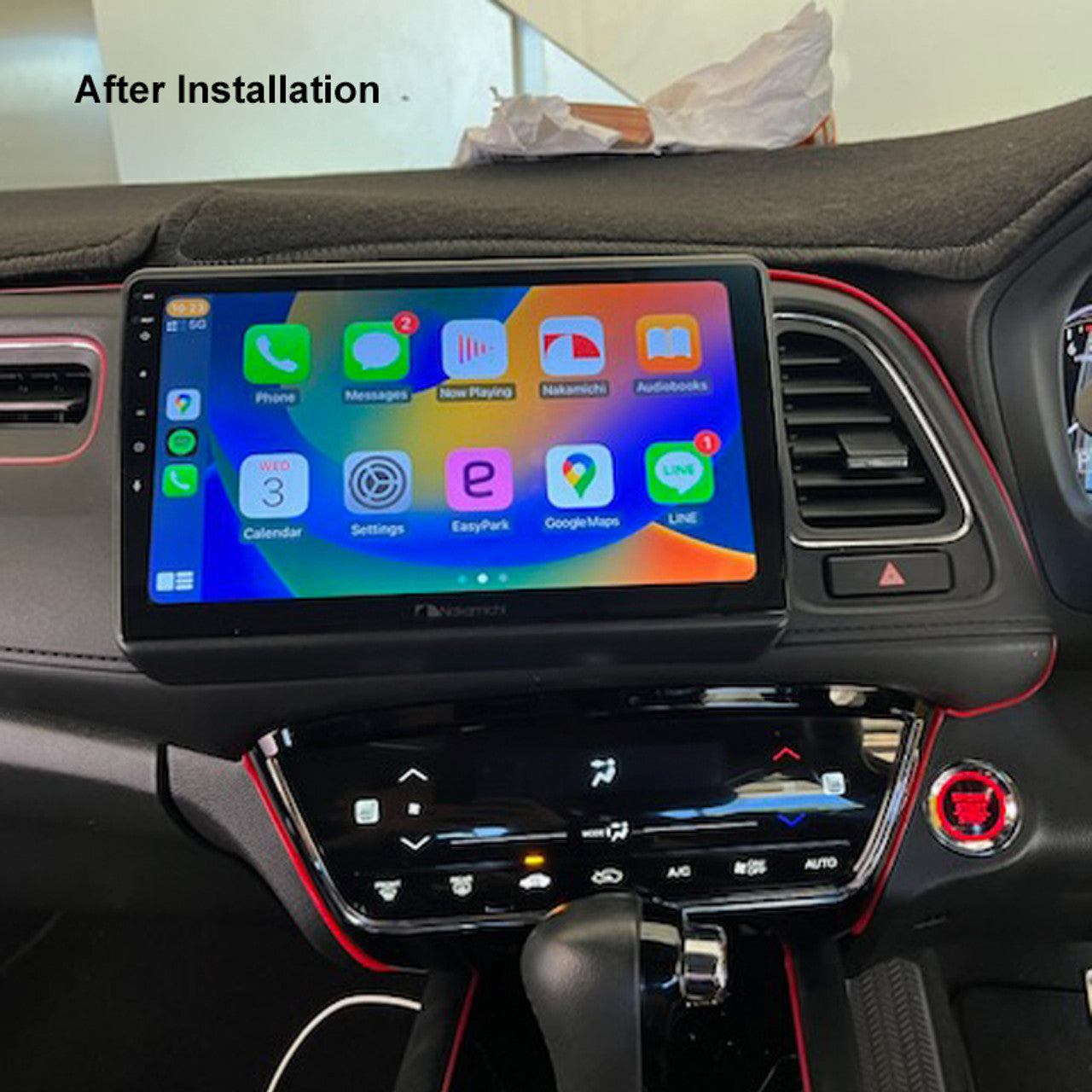

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Honda HRV 2014-2021

Compatibility:

• for Honda HRV 2014-2021

Important Notice:

• Compatible with Steering Wheel Controls
• Works with factory reverse camera
• If your car has a factory side camera, an extra cost for a specific harness will apply.

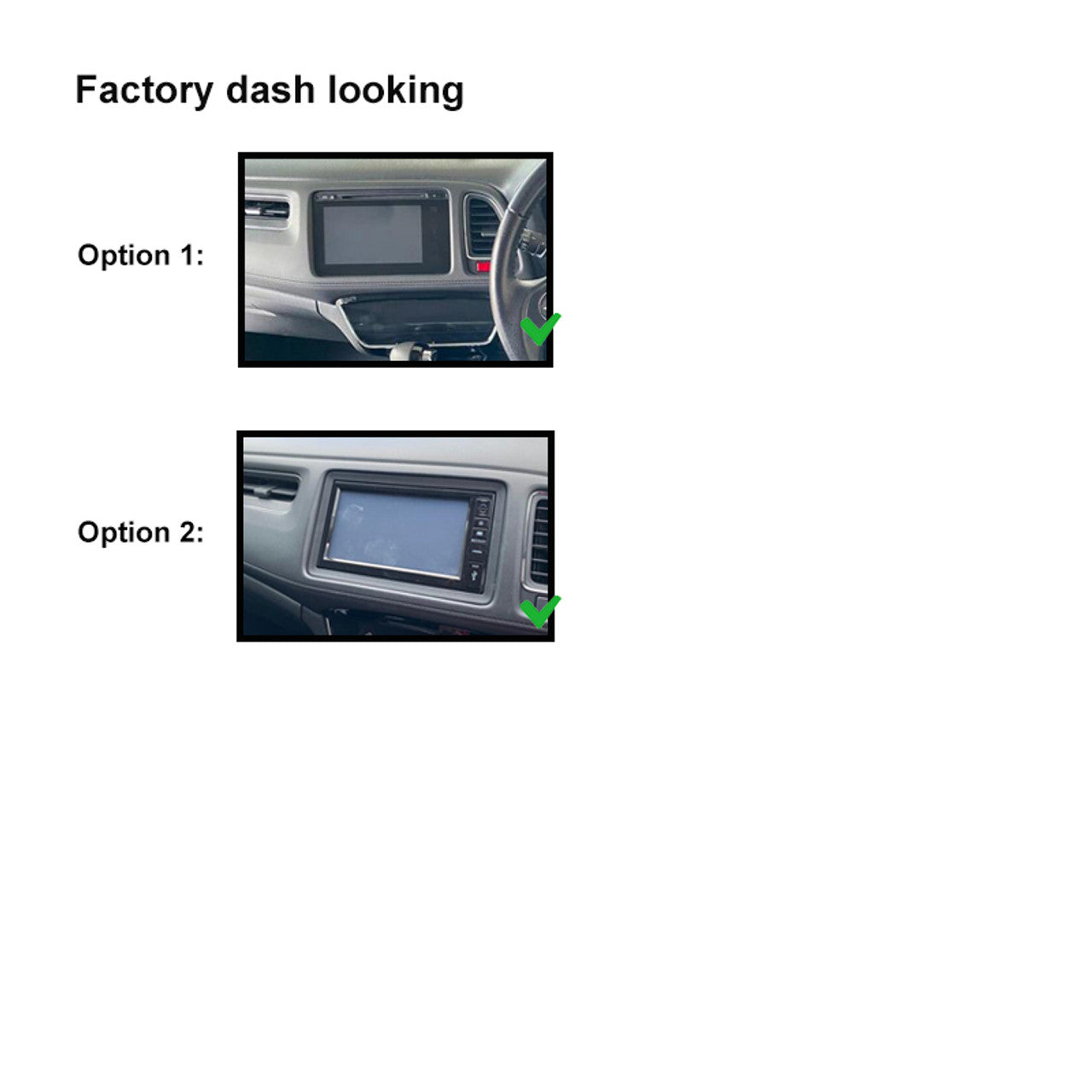

• Please send a photo of your dash with the car year and model when purchasing to help us provide the compatible harness.

Main Features:

Wireless Apple CarPlay:

• The Ultimate Co-Pilot. Enjoy CarPlay without cables!
• CarPlay is a smarter, safer way to use your iPhone while driving.
• Get directions, make calls, send and receive messages, and enjoy your favorite music on your car's built-in display.
• With iOS, CarPlay introduces new app categories and custom wallpapers for your CarPlay Dashboard.

Wireless Android Auto (Wired for some specific phone brands):

• Pair your phone without cables and get on the road.
• Your Android apps will appear on the screen instantly.
• Tap to get driving directions, send a text, or make hands-free calls.
• Android Auto helps you stay focused on the road and have fun along the way. Just plug in and go!

Bluetooth:

• Communication system: BT 5.0 + EDR
• Frequency Band: 2.4GHz
• Max Range: 5 meters

Radio:

• FM Frequency Range: 87.5-108.0 MHz
• AM Frequency Range: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio:

• Max Power: 4×50W
• Pre-output (V): 4V/10KΩ
• Pre-output Impedance: ≤600Ω
• Speaker Impedance: 4-8Ω
• AUX-L (at back of the unit)
• AUX-R (at back of the unit)

Video Inputs:

• Reverse Camera Video Input: R-CAM (at back of the unit)
• Extra Video Input: V-IN (at back of the unit)
• Video Output 1: V-OUT1 (at back of the unit)
• Video Output 2: V-OUT2 (at back of the unit)

USB Interface:

• CP/AA: USB connection for CarPlay / Android Auto (at back of the unit)
• USB: USB connection for music or video (at back of the unit)

Other Inputs at Back of the Unit:

• Radio Antenna Input: ANT (at back of the unit)
• Microphone Input: MIC (at back of the unit)

RCA Cable Outputs:

• Front Left Speaker Output: FL_OUT
• Front Right Speaker Output: FR_OUT
• Rear Left Speaker Output: RL_OUT
• Rear Right Speaker Output: RR_OUT
• Subwoofer Output: SUB_OUT
• Canbus Connector: UART_RX/UART_TX
• Parking Brake: PARK
• Amplifier Control: AMP

Package Includes:

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x User Manual
• 1 x Microphone
• 2 x USB Cable
• Note: For different car models, the accessory package may vary. It is normal if the accessories are not exactly as listed.

General Specifications:

• TFT Screen Size: 10"
• Display Resolution: 1240×600
• Contrast Ratio: 500
• Brightness: 500 nits
• Operating Voltage: 14.4V (10.5-16V)
• USB Readable/Chargeable: (5±0.25V/1A)
• Supported Video Formats: H264, MP4, AVI, MKV, FLV
• Supported Audio Formats: MP3, APE, AAC, FLAC
