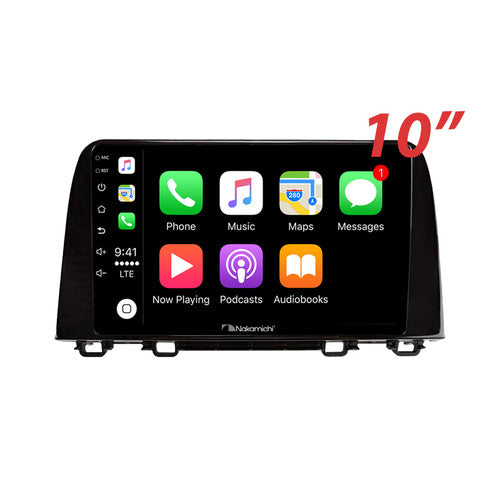

Nakamichi Android Wireless Apple CarPlay & Android Auto Sat Nav Solution for Honda CRV 2017+

Compatibility:

• for Honda CRV 2017+

Important Notice:

• Nakamichi Android System
• Compatible with Steering Wheel Controls
• Compatible with factory USB
• Works with factory standard camera (not compatible with factory side cameras)

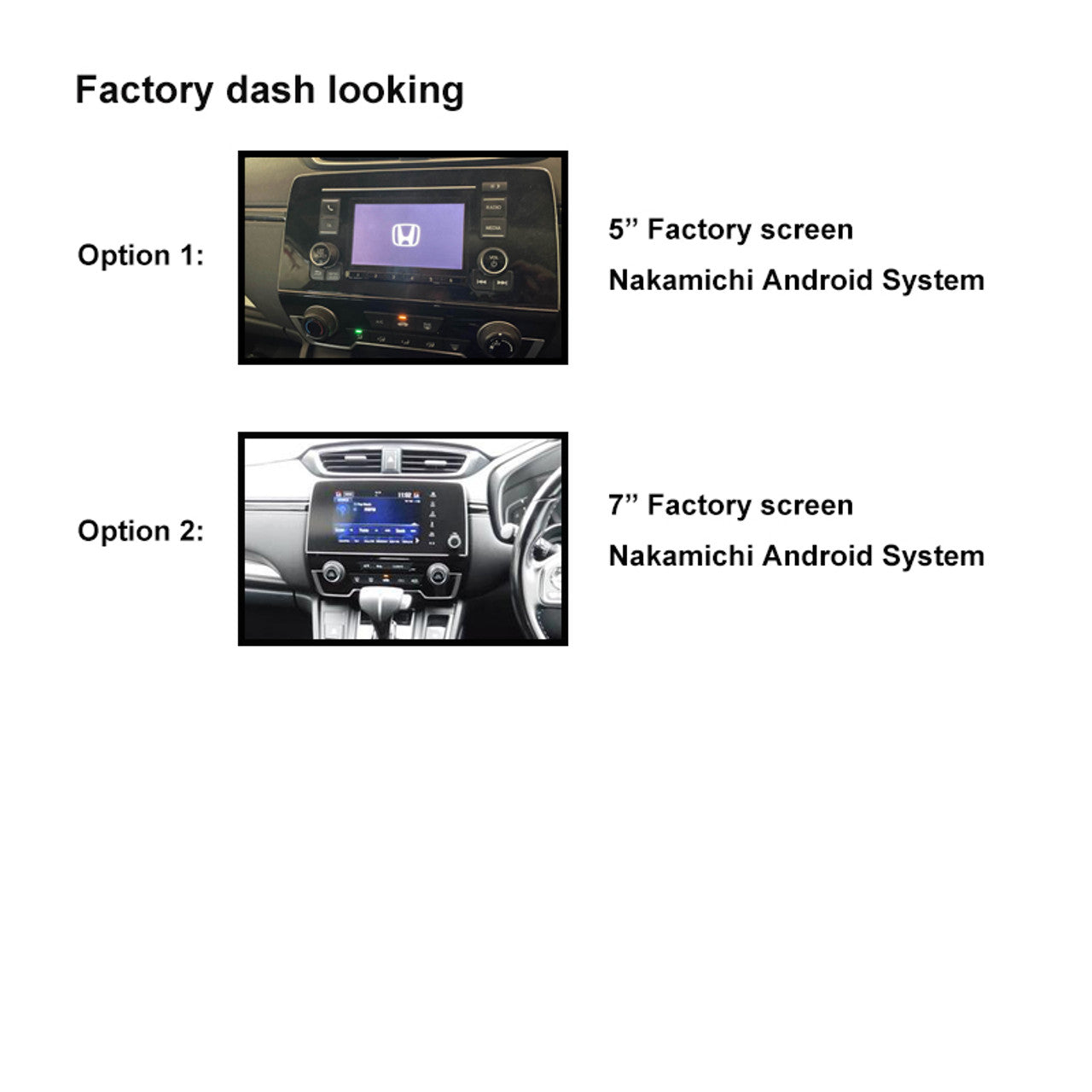

• Option 1: 5" factory screen
• Option 2: 7" factory screen (Extra cost for specific harness)
• Please send us a message with a photo of your dash, year, and model when purchasing so we can send you the compatible harness.

Main Features:

PhoneLink Operation:

iPhone Connection:

• The Ultimate Co-Pilot! Enjoy iPhone apps wirelessly while driving.
• PhoneLink is a smarter, safer way to use your iPhone.
• Get directions, make calls, send and receive messages, and enjoy your music, all on your car's built-in display.

Android Phone Connection (Wired for some specific phone brands):

• Pair your Android phone wirelessly, and hit the road.
• Your phone apps will appear on the car's display instantly.
• Get directions, call hands-free, and send texts—all designed to help you stay focused on the road. Plug in and go!

Built-In GPS:

• Preload GPS data, or update and purchase preferred data via the Google Play Store.

Built-In WiFi & 4G Support:

• Connect the stereo to a WiFi network or insert a SIM card for 4G connectivity.

Bluetooth:

• Communication System: BT 5.0 + EDR
• Frequency Band: 2.4GHz
• Max Range: 5 meters

Radio:

• FM Frequency Range: 87.5-108.0 MHz
• AM Frequency Range: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio Inputs/Outputs:

• Max Power: 4×50W
• Pre-output (V): 4V/10KΩ
• Pre-output Impedance: ≤600Ω
• Speaker Impedance: 4-8Ω
• AUX IN_L: Audio Left Input
• AUX IN_R: Audio Right Input
• FL_OUT: Front Left Speaker Output
• FR_OUT: Front Right Speaker Output
• SUB_OUT: Subwoofer Output
• AMP_POW: Amplifier Control
• RL-OUT: Rear Left Speaker Output
• RR-OUT: Rear Right Speaker Output

Video:

• Reverse Camera Video Input: B.CAMERA
• Front Camera Input: F_CAMERA
• Extra Video Input: CVBS

USB Interface:

• 4-PIN USB: USB connection for PhoneLink (iPhone or Android)
• 6-PIN USB: USB connection for music or video

Other Inputs:

• Radio Antenna Input: RADIO
• GPS Antenna Input: GPS
• 5G WiFi & 4G-/+ Connectivity
• External Microphone Port: MIC
• Brake Detection: BRAKE
• Canbus Box Interface: Can RX/TX

Package Includes:

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x WiFi/BT/Camera Cable
• 1 x RL/RR Cable
• 1 x Microphone
• 1 x 4G Antenna
• 1 x GPS Antenna
• 1 x User Manual
• 2 x USB Cable
• Note: Different car models may require different accessories. It's normal if the accessory package differs from the listing.

General Specifications:

• TFT Screen Size: 10"
• System: NK 12.0
• CPU: 8-Core Cortex-A55
• RAM: 4GB
• ROM: 32GB
• Display Resolution: 1280×720 IPS
• Brightness: 500 nits
• Operating Voltage: 14.4V (10.5-16V)
• USB Readable/Chargeable: (5±0.25V/1A)
• Video Formats Supported: H264, MP4, AVI, MKV, FLV
• Audio Formats Supported: MP3, APE, AAC, FLAC
