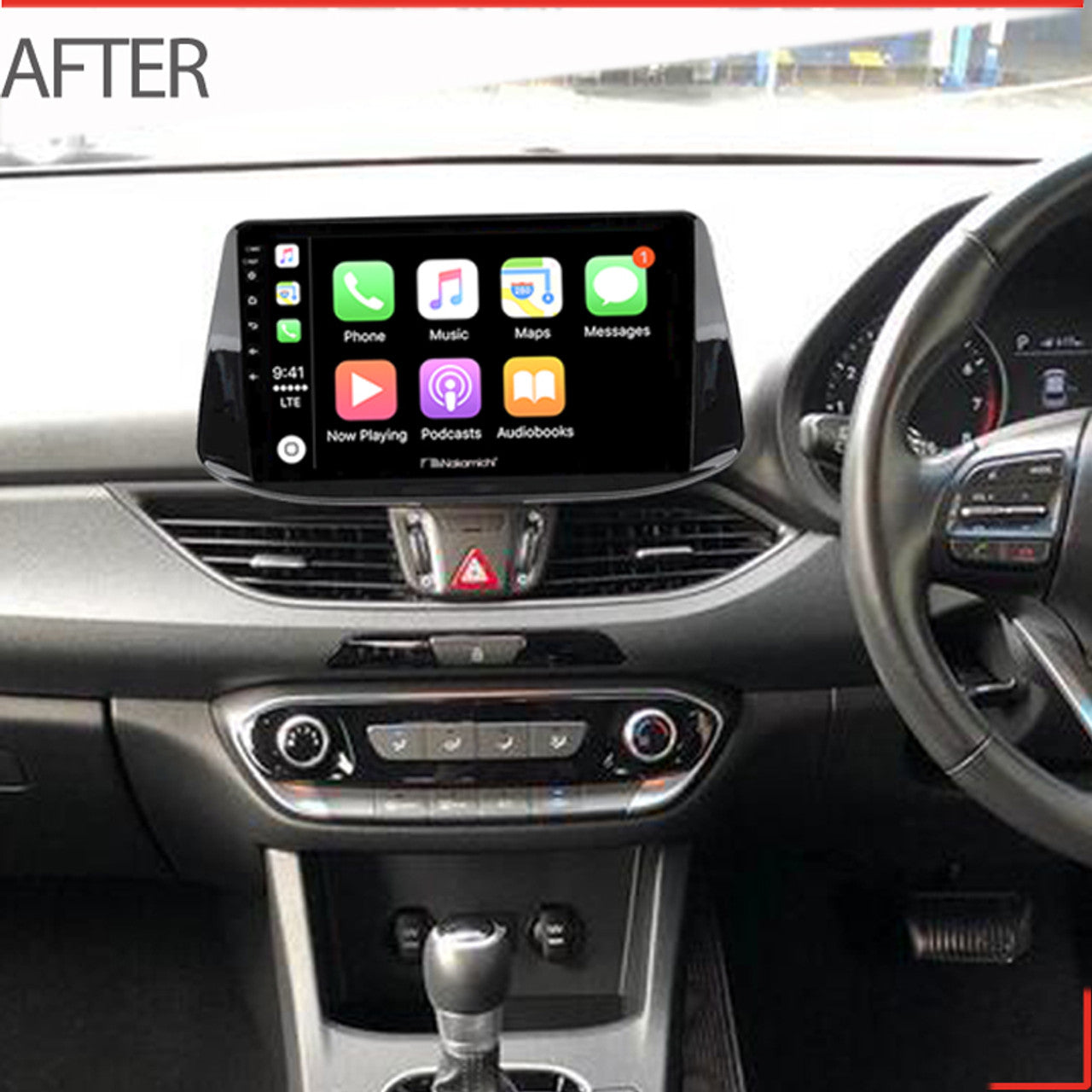

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Hyundai i30 2017-2023

Compatibility:

• for Hyundai i30 2017-2023

Important Notice:

• Compatible with Steering Wheel Controls.

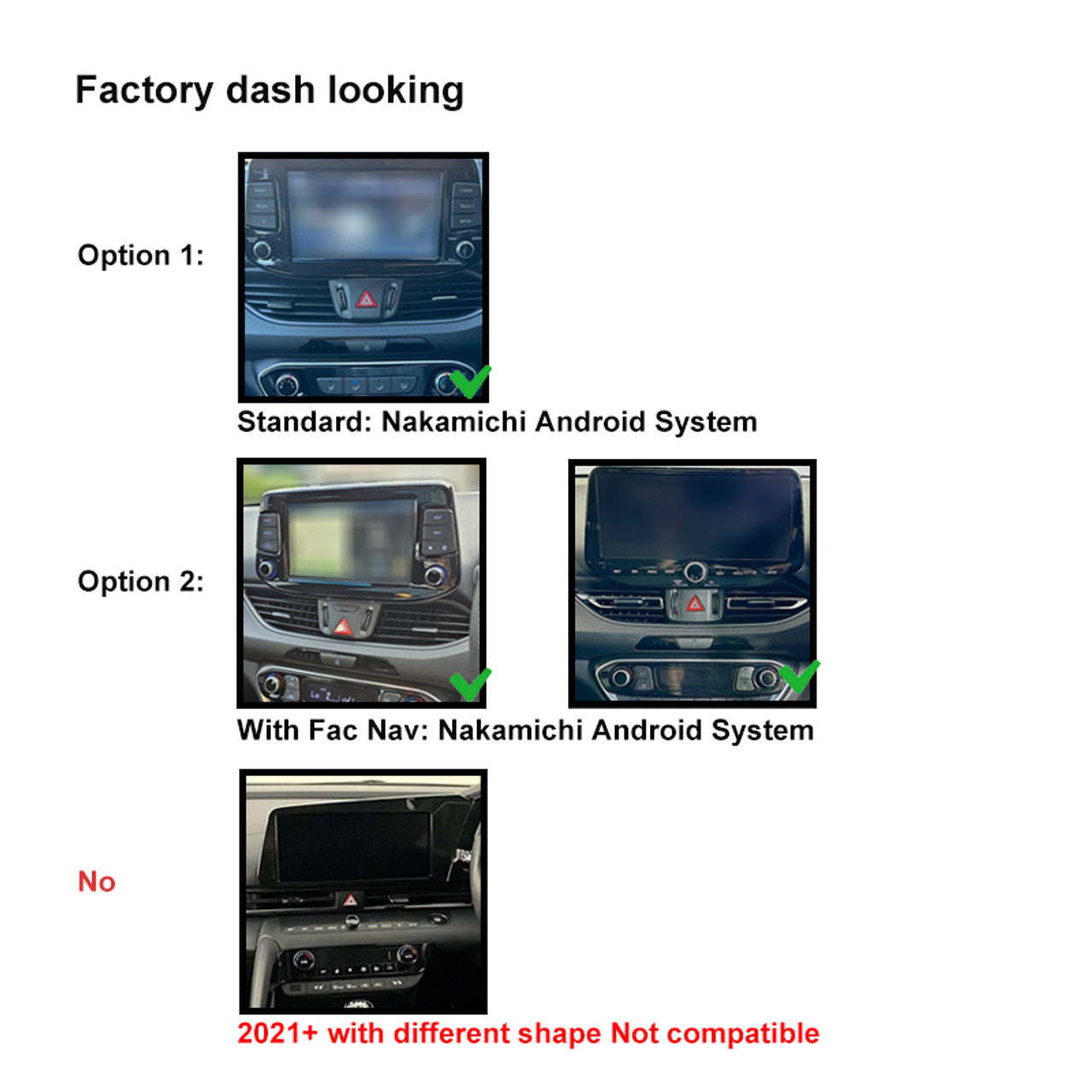

• Option 1: Standard model.
• Option 2: Factory Sat Nav model.
• Not compatible with the factory amplified system.
• Not compatible with the 2021+ newer dash design.
• Please send a photo of your car’s dash along with the year and model when purchasing, so we can provide you with the correct compatible harness.

Main Features:

PhoneLink Operation

iPhone Connection:

• The Ultimate Co-Pilot. Enjoy iPhone apps wirelessly.
• PhoneLink is a smarter, safer way to use your iPhone while driving.
• Get directions, make calls, send and receive messages, and enjoy your favorite music—all on your car’s built-in display.

Android Phone Connection (Wired for some specific phone brands):

• Pair your Android phone wirelessly and hit the road!
• Your Android apps show up onscreen instantly.
• Tap to get driving directions or talk to send a text. Even call hands-free.
• PhoneLink helps you focus on the road and enjoy the journey.

Built-in GPS:

• Preload GPS data, update or purchase preferred maps from the Google Play Store.

Built-in Wi-Fi & Support for 4G:

• Connect the stereo to a Wi-Fi network, or insert a SIM card to access 4G connectivity.

Bluetooth:

• Bluetooth Communication System: BT 5.0 + EDR
• Frequency band: 2.4GHz
• Maximum range: 5 meters

Radio Features:

• FM Frequency Range: 87.5 - 108.0 MHz
• AM Frequency Range: 522 - 1620 kHz
• Presets: 18 FM, 12 AM

Audio Inputs/Outputs:

• Max Power: 4×50W
• Pre-output (V): 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker Impedance: 4-8Ω
• AUX Inputs: AUX IN_L (Left), AUX IN_R (Right)
• Speaker Outputs: FL_OUT (Front Left), FR_OUT (Front Right), RL-OUT (Rear Left), RR-OUT (Rear Right)
• Subwoofer Output: SUB_OUT
• Amplifier Control: AMP_POW

Video Inputs:

• Reverse Camera Video Input: B.CAMERA
• Front Camera Input: F_CAMERA
• Extra Video Input: CVBS

USB Interface:

• 4PIN USB: USB connection for PhoneLink (iPhone or Android)
• 6PIN USB: USB connection for music or video

Other Inputs:

• Radio Antenna Input: RADIO
• GPS Antenna Input: GPS
• 5G Wi-Fi
• 4G +/-
• External Microphone Port: MIC
• Brake Detection: BRAKE
• Canbus Box Interface: Can RX/TX

Package Includes:

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x Wi-Fi/BT/Camera Cable
• 1 x RL/RR Cable
• 1 x Microphone
• 1 x 4G Antenna
• 1 x GPS Antenna
• 1 x User Manual
• 2 x USB Cable
• Note: For different car models, the accessory package may vary. It is normal if the accessories are not exactly as listed.

General Specifications:

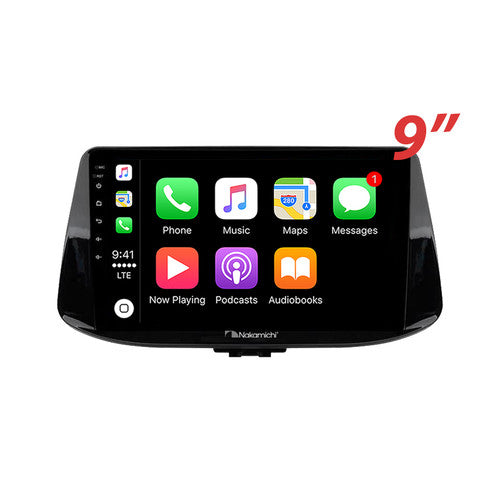

• TFT Screen Size: 9"
• System: NK 12.0
• CPU: 8-Core Cortex-A55
• RAM: 4GB
• ROM: 32GB
• Display Resolution: 1280x720 IPS
• Brightness: 500 nits
• Operating Voltage: 14.4V (10.5-16V)
• USB Readable/Chargeable: 5V/1A (±0.25V)
• Supported Video Formats: H264, MP4, AVI, MKV, FLV
• Supported Audio Formats: MP3, APE, AAC, FLAC
