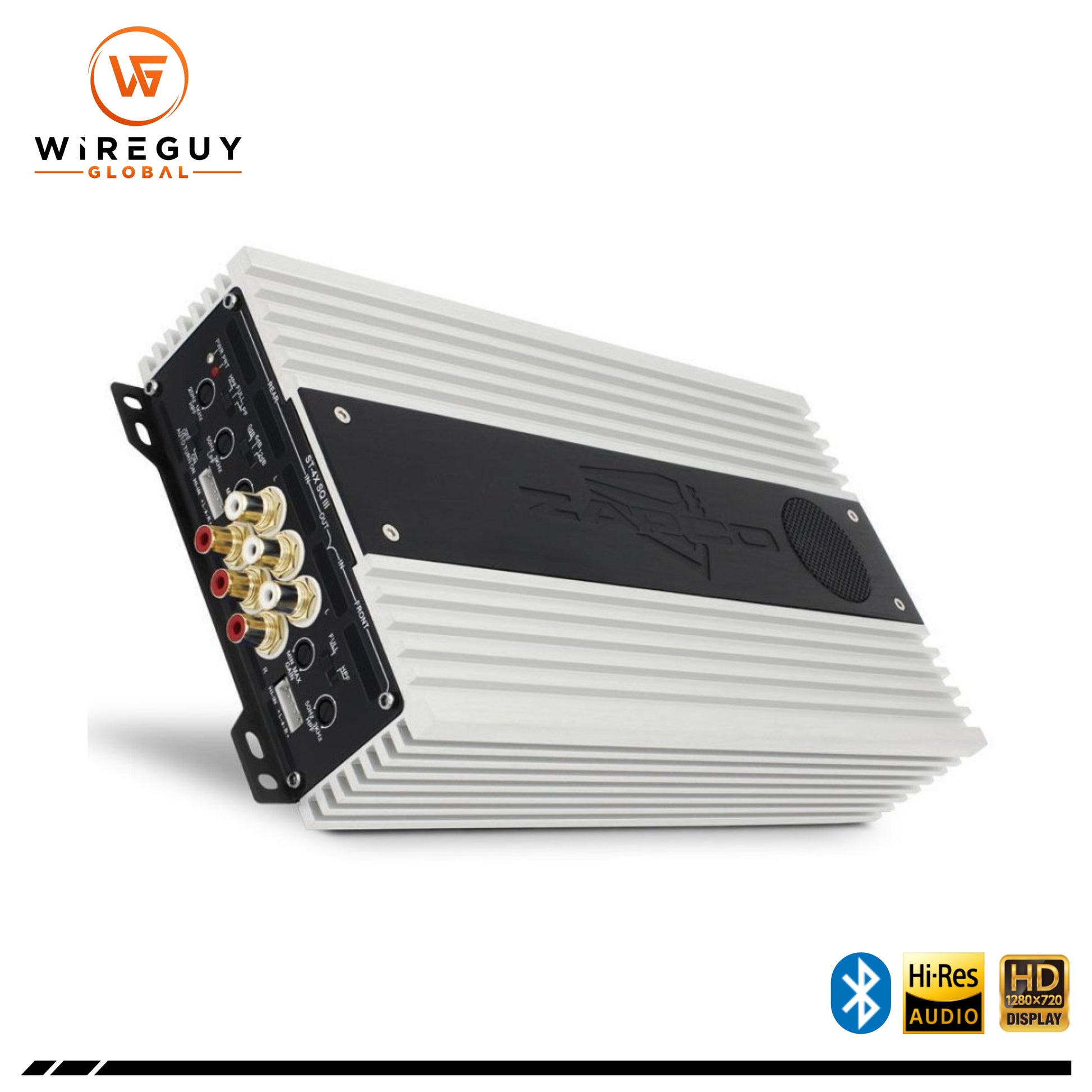

Zapco 4-Channel Class A/b Amplifier - 4x 70w @ 4 OHM

The Zapco 4-Channel Class A/B Amplifier is a high-quality, full-range amplifier designed to elevate your sound system with crystal-clear audio and incredible reliability. Featuring upgraded op-amps, capacitors, and more, this amplifier delivers premium sound performance for audiophiles and enthusiasts alike. Whether you’re building a car audio system or enhancing your home setup, this compact amplifier offers power, clarity, and flexibility.

Key Features:

4-Channel, Full Range, Class A/B Design
The Class A/B design of this amplifier provides exceptional sound quality with low distortion. It delivers clean, clear audio while offering the efficiency of Class A/B circuitry for balanced performance.

SQ Upgrades: Op-Amps, Caps, and More
With premium upgrades to its internal components, including op-amps and capacitors, this amplifier is optimized for superior sound quality and reliability, ensuring a refined listening experience.

Tiffany-Style Panel Mount RCA’s
The amplifier features high-quality Tiffany-style RCA connectors for a secure, noise-free connection between your components, improving overall sound clarity.

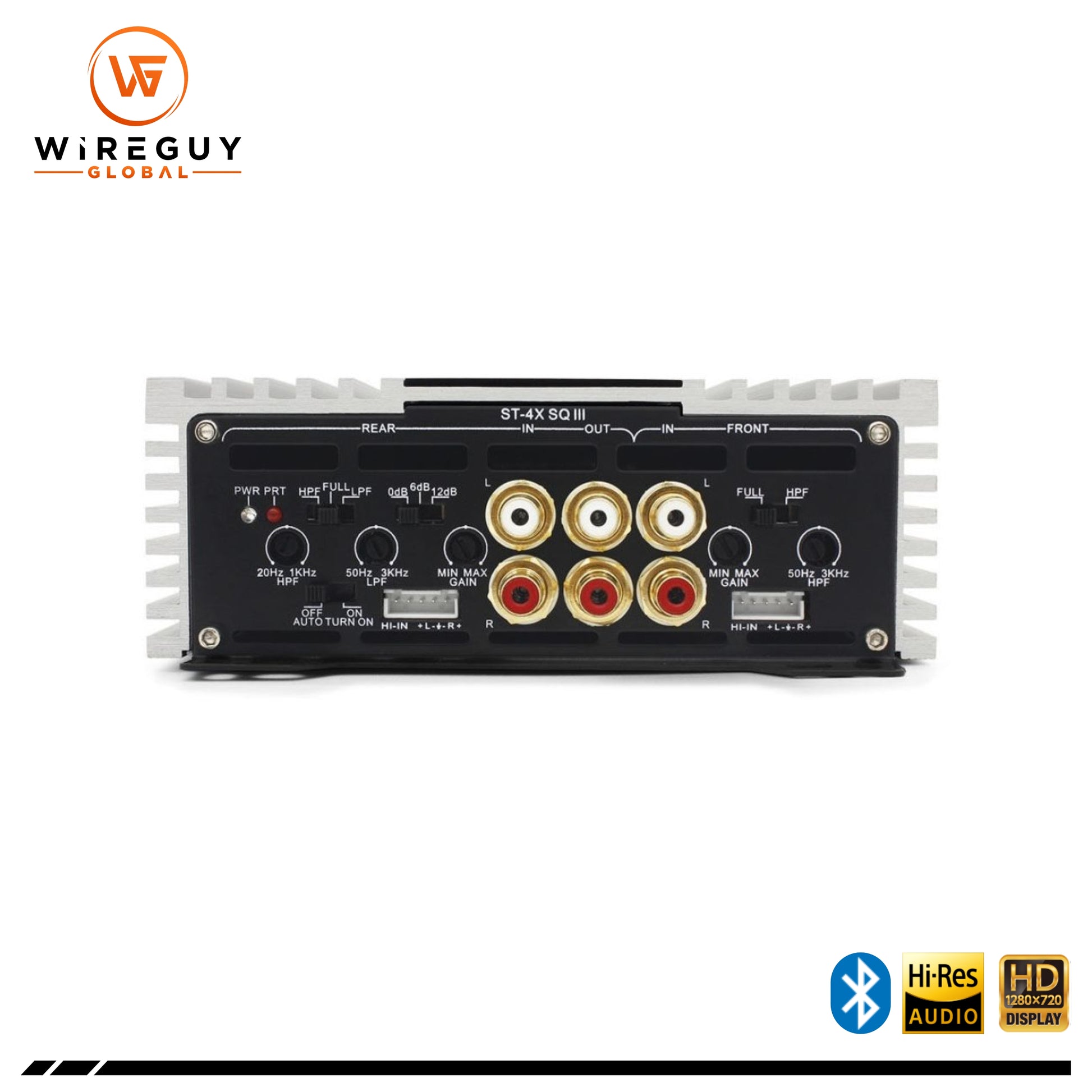

RCA and Speaker Level Inputs
Equipped with both RCA and speaker-level inputs, the amplifier offers seamless compatibility with a variety of audio systems, making it versatile for both new and older setups.

Variable Input Gain Control
Adjust the input gain control to match your system's specifications, allowing for fine-tuned audio performance with minimal distortion.

Variable Electronic Crossover
The built-in crossover allows you to adjust the frequency range for each channel, ensuring optimal sound reproduction across your entire audio setup.

Auto-On with Speaker-Level Inputs
The amplifier automatically powers on when it detects a signal via the speaker-level inputs, simplifying your setup and eliminating the need for an external turn-on lead.

Compact Chassis
The slim, compact design ensures that the Zapco 4-Channel amplifier fits easily in tight spaces, whether you're installing it in a car or home audio system.

Variable Bass Boost Control
Enhance the low-end frequencies with the variable bass boost control, allowing you to dial in the perfect amount of bass for your audio preferences.

Specifications:

• Power Output (4Ω): 4 x 70 watts RMS
• THD @ Rated Power: < 0.1%
• Power Output (2Ω): 4 x 95 watts RMS
• Bridged Power Output (4Ω): 2 x 190 watts RMS
• Signal to Noise Ratio: > 95dB
• Channel Separation: > 60dB
• Frequency Response: 15Hz to 30kHz ±1dB
• Input Sensitivity: 0.25v to 5v
• Dimensions:
  • 160mm (W) x 58mm (H) x 300mm (L)
  • Overall Dimensions: 160mm (W) x 58mm (H) x 325mm (L)

The Zapco 4-Channel Class A/B Amplifier combines a powerful output with a compact, space-saving design. It delivers 70 watts RMS per channel at 4Ω, and with its premium upgrades, you’ll enjoy a clearer, more dynamic sound that brings your audio setup to life.

Order your Zapco 4-Channel Class A/B Amplifier today and experience superior audio performance with a compact footprint and versatile features! Whether you're enhancing your vehicle's sound system or optimizing your home setup, this amplifier delivers unmatched clarity and power.
