Zapco 6-Channel Class-A/B Amplifier with DSP - 6x 100w @ 4 OHM
Zapco 6-Channel Class-A/B Amplifier with DSP - 6x 100w @ 4 OHM
Couldn't load pickup availability

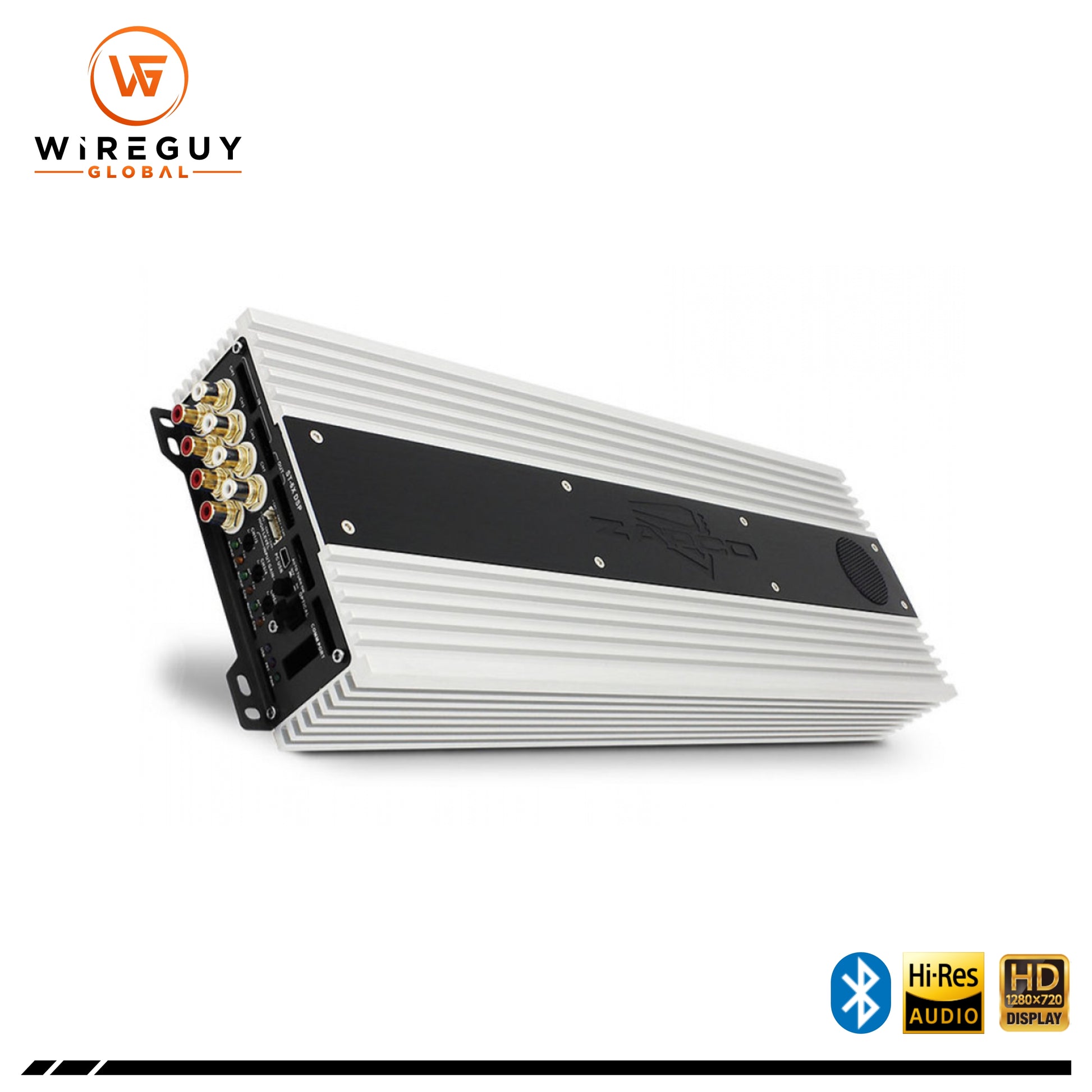

The Zapco 6-Channel Class-A/B Amplifier with DSP is a high-performance audio amplifier designed for enthusiasts who demand the best in power, clarity, and control. This full-range amplifier features on-board, full-function 8-channel digital signal processing (DSP) for precision tuning and optimized sound. Delivering 100 watts per channel at 4Ω, this amplifier is ideal for powering high-end speaker setups in both home and car audio systems. Whether you're looking to enhance the sound of your vehicle's audio system or create an immersive home theater experience, this amplifier provides the perfect blend of power and functionality.
Key Features:
6-Channel, Full Range, Class A/B Design
The Zapco 6-Channel Class A/B Amplifier offers superior sound quality with low distortion, thanks to its Class A/B design. This amplifier is ideal for both full-range speakers and subwoofers, providing clean and powerful audio for every component in your system.
On-Board, Full Function 8-Channel Digital Signal Processing (DSP)

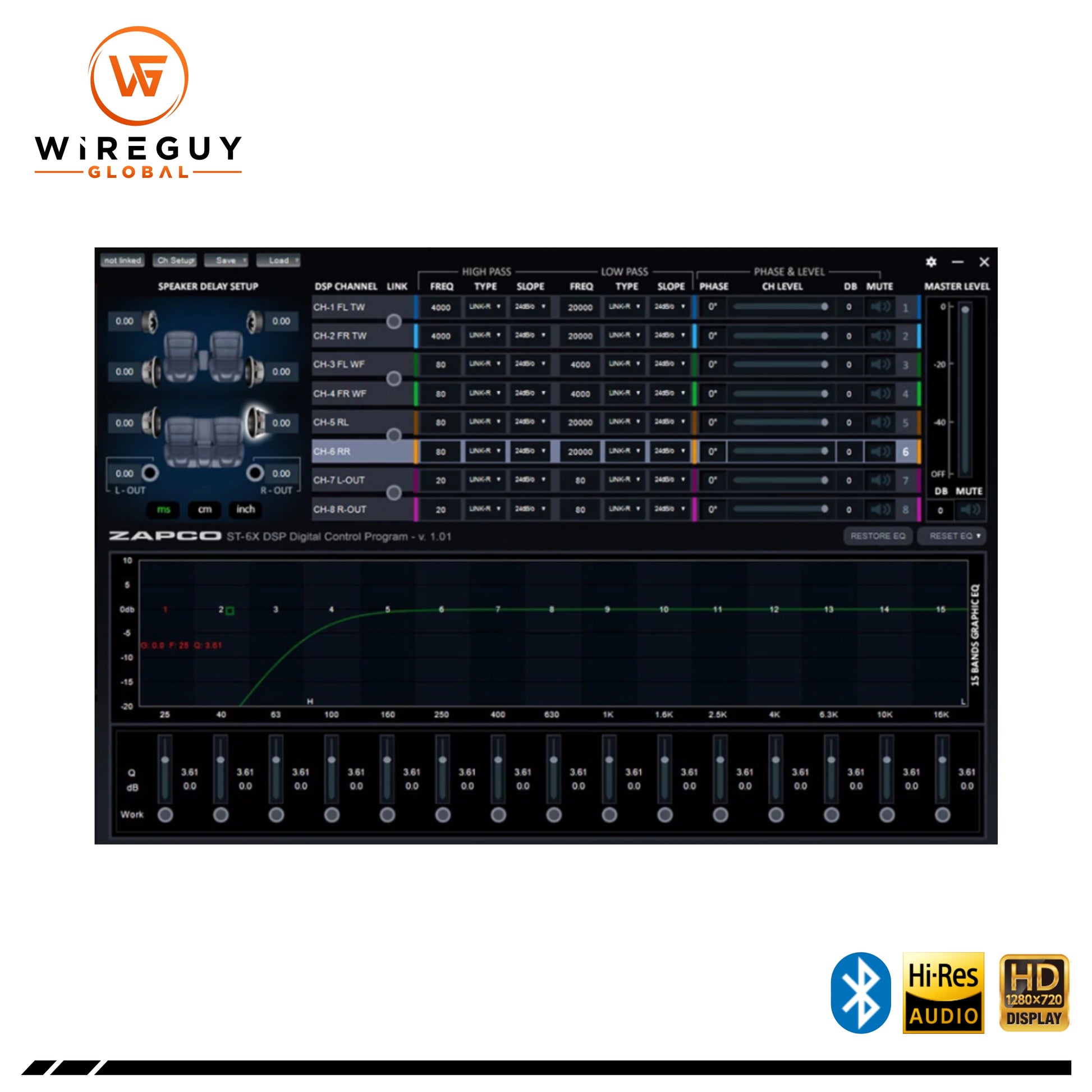

With 8 channels of digital signal processing, the Zapco amplifier ensures that each speaker receives a perfectly tuned signal. The DSP includes high-pass and low-pass filters, phase control, signal delay, and 15 channels of parametric equalization per channel to customize your sound for optimal performance.

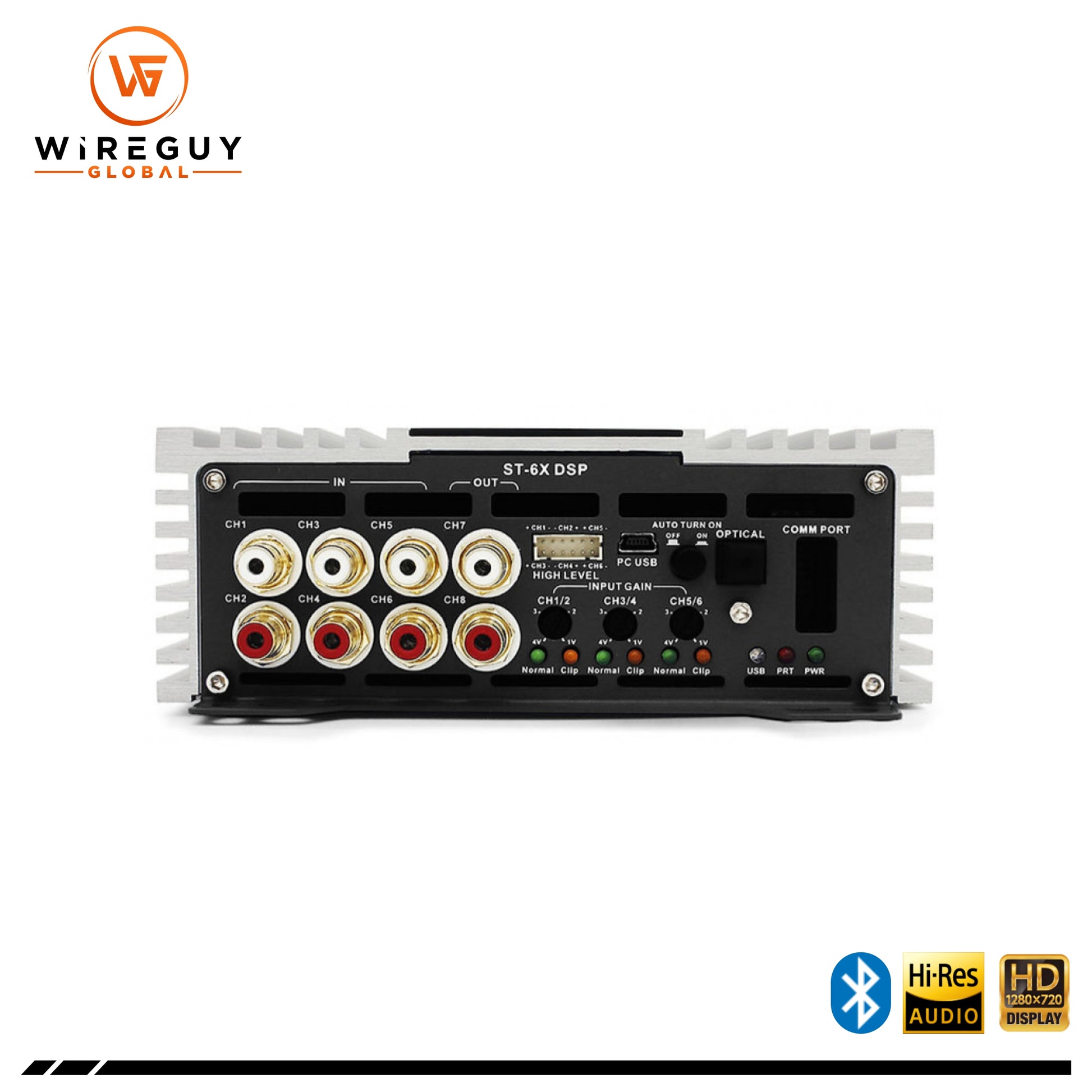

Optical Digital Input
For the highest quality signal transfer, the amplifier includes an optical digital input, ensuring a clean, lossless connection to compatible audio sources.
Bluetooth Streaming
The amplifier supports Bluetooth streaming via an external APTX HD module (sold separately), allowing you to stream music wirelessly in high-quality, lossless audio formats for a superior listening experience.
High-Power Output

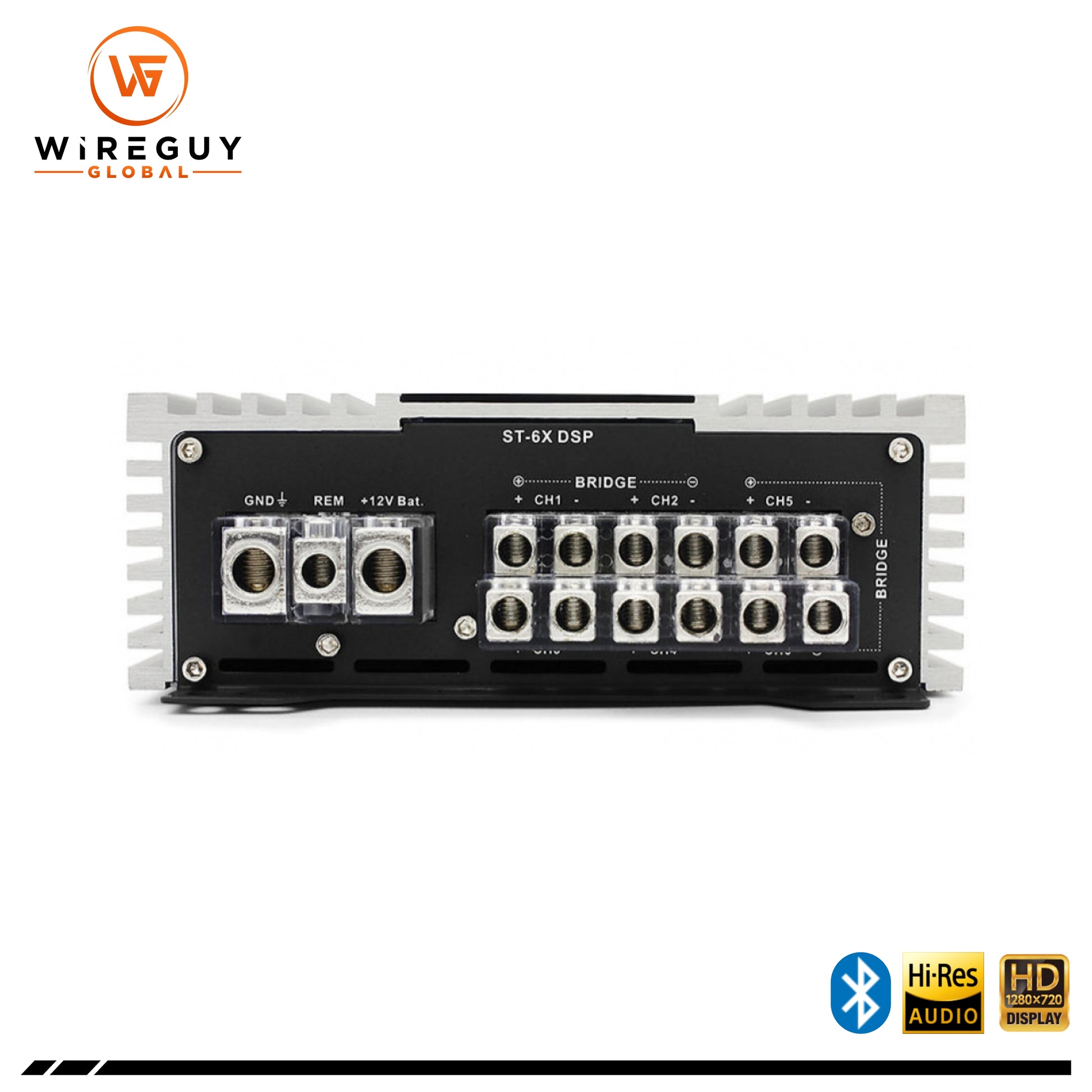

With 100 watts per channel at 4Ω, the Zapco 6-Channel Amplifier delivers powerful performance for your speakers. For systems with a 2Ω load, it delivers 130 watts per channel, and when bridged at 4Ω, it produces up to 250 watts per channel for maximum power.
Specifications:
- Power Output (4Ω): 6 x 100 watts RMS
- Power Output (2Ω): 6 x 130 watts RMS
- Bridged Power Output (4Ω): 3 x 250 watts RMS
- THD @ Rated Power: < 0.5%
- Signal to Noise Ratio: > 90dB
- THD + Noise: < 0.2%
- Channel Separation: > 60dB
- Frequency Response: 15Hz to 30kHz ±1dB
- Input Sensitivity: 0.25v to 5v
-
Dimensions:
- 160mm (W) x 52mm (H) x 452mm (L)
- Overall Dimensions: 160mm (W) x 52mm (H) x 488mm (L)
The Zapco 6-Channel Class-A/B Amplifier provides exceptional power and sound quality in a compact design. With a total output of 100 watts per channel at 4Ω and advanced DSP features, this amplifier is perfect for audiophiles and professionals looking for precision, power, and flexibility in their audio setups.
Order your Zapco 6-Channel Class-A/B Amplifier with DSP today and elevate your audio experience with powerful amplification, sophisticated DSP tuning, and versatile Bluetooth streaming capabilities! Whether you're enhancing your car audio or home theater system, this amplifier delivers the ultimate in performance and sound control.
