Nakamichi Wireless Apple CarPlay & Android Auto System for Mitsubishi Mirage 2012+

Compatibility:

• For Mitsubishi Mirage 2012 and newer models.

Important information

• Supports steering wheel controls.
• Compatible with factory reverse camera.

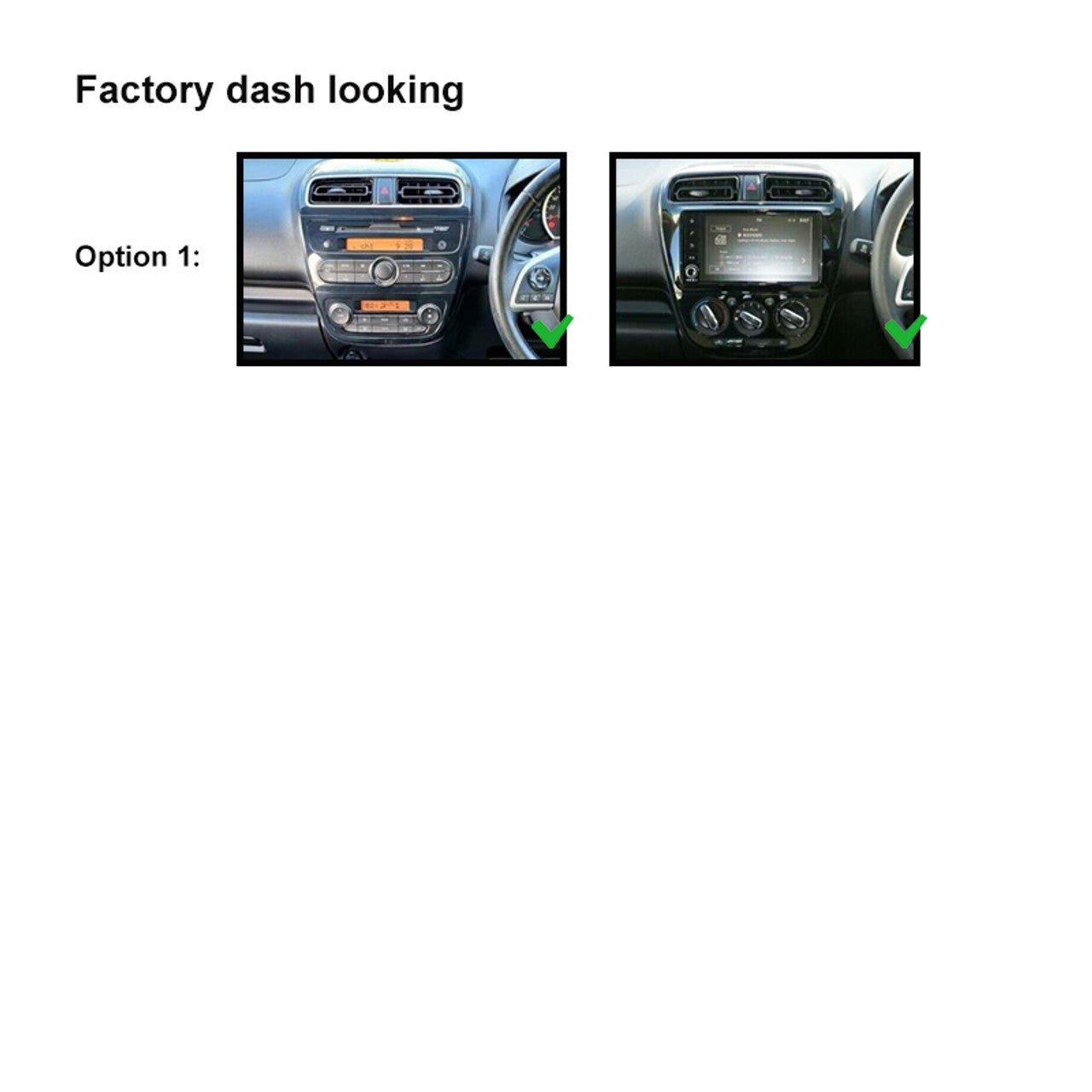

• Please send a photo of your dashboard along with your vehicle's year and model after purchasing so we can provide the right harness.

Key features
Wireless Apple CarPlay
Experience seamless connectivity with Apple CarPlay wirelessly! Stay safe and connected while driving. Access maps, make calls, send messages, and listen to music – all from your car's display. Enjoy new features like app categories and customizable wallpapers with iOS integration.

Wireless Android Auto
Get on the road without wires. Android Auto wirelessly connects your phone to your car display, allowing you to use your Android apps for navigation, calls, text messages, and more. For some phone brands, a wired connection may be needed.

Bluetooth 5.0
Built-in Bluetooth (5.0 + EDR) for smooth and reliable communication with a 5-meter range, using the 2.4GHz frequency band.

Radio

• FM frequency: 87.5-108.0MHz
• AM frequency: 522-1620KHz
• 18 FM and 12 AM preset stations

Audio performance

• Max power output: 4 x 50W
• Pre-output voltage: 4V/10KΩ
• Speaker impedance: 4-8Ω
• AUX inputs for left and right channels
• High-quality audio output with multiple options for speaker configurations

Video in/out

• Reverse camera input
• Extra video input
• Dual video outputs for additional screens or devices

USB interface

• USB connection for Apple CarPlay & Android Auto
• Additional USB connection for music or video playback

Other connections

• Antenna input
• Microphone input for better hands-free experience

RCA cable connections

• Outputs for front, rear, and subwoofer speakers
• Parking brake and amplifier control connections
• UART connector for CAN bus integration

What’s included in the package

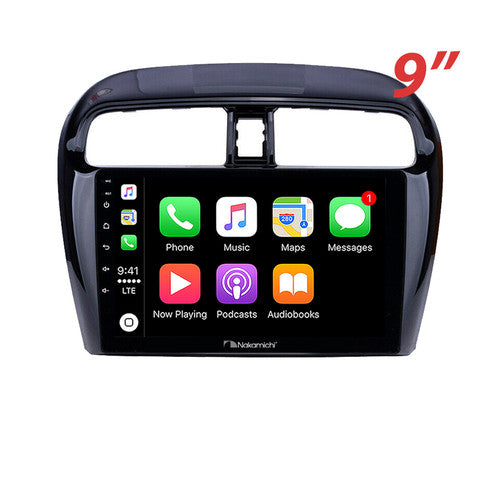

• 1 x Nakamichi head unit with fascia
• 1 x Main wiring harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables
  Note: The package may vary slightly depending on the car model. Any variation is normal.

Specifications

• Display size: 9" TFT
• Resolution: 1240×600
• Brightness: 500nit
• Operating voltage: 14.4V (range: 10.5-16V)
• USB output: 5±0.25V/1A
• Supported video formats: H264, MP4, AVI, MKV, FLV
• Supported audio formats: MP3, APE, AAC, FLAC
