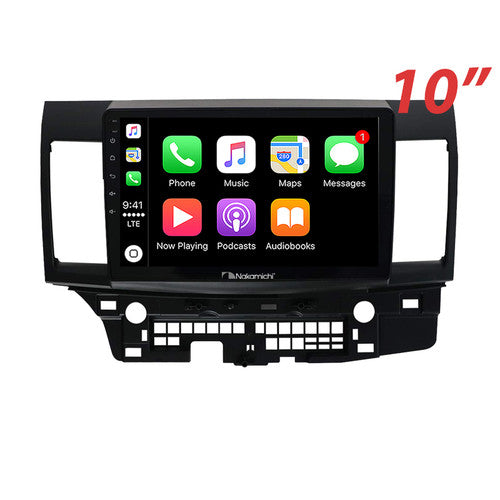

Nakamichi Wireless Apple CarPlay & Android Auto System for Mitsubishi Lancer 2007-2017

Compatibility:

• For Mitsubishi Lancer 2007-2017.

Important information

• Supports steering wheel controls.

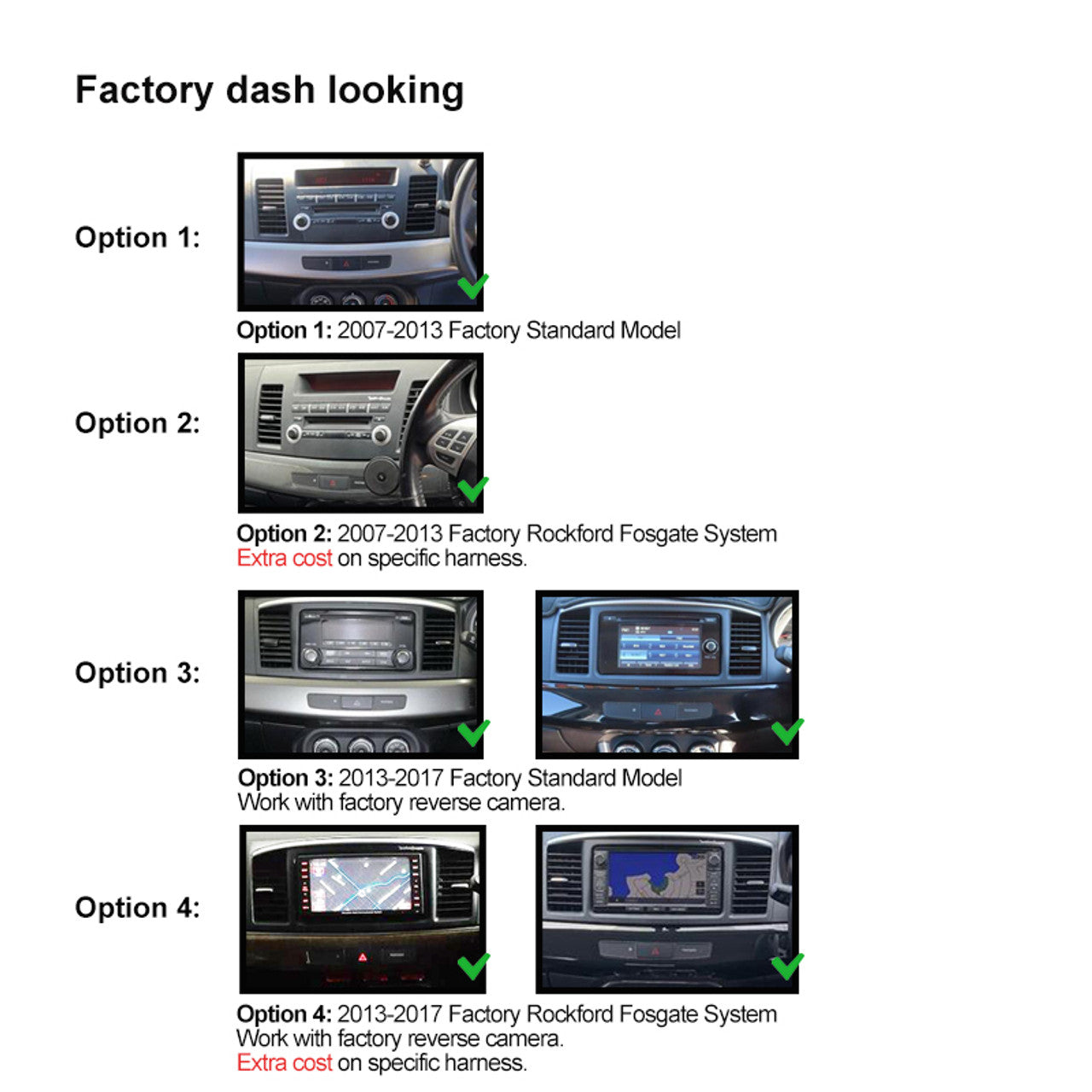

• Option 1: 2007-2013 factory standard system.
• Option 2: 2007-2013 factory Rockford Fosgate sound system (extra cost for specific harness).
• Option 3: 2013-2017 factory standard system. Works with factory reverse camera.
• Option 4: 2013-2017 factory Rockford Fosgate sound system (extra cost for specific harness, works with factory reverse camera).
• Please send a photo of your dashboard along with your vehicle's year and model after purchasing so we can provide the correct harness.

Key features
Wireless Apple CarPlay
Experience CarPlay without the need for cables! Apple CarPlay offers a safer, smarter way to use your iPhone while driving. Get directions, make calls, send and receive messages, and enjoy music all on your car’s built-in display. With iOS integration, enjoy new app categories and customizable wallpapers for your CarPlay dashboard.

Wireless Android Auto
Wirelessly connect your phone to your car display and access your Android apps for navigation, texting, calling, and more. For some phone brands, a wired connection may be required. Android Auto helps you stay focused on the road while making your drive more enjoyable.

Bluetooth 5.0
Equipped with Bluetooth (5.0 + EDR) for smooth, reliable communication with a 5-meter range, utilizing the 2.4GHz frequency band.

Radio

• FM frequency: 87.5-108.0MHz
• AM frequency: 522-1620KHz
• 18 FM and 12 AM preset stations

Audio performance

• Max power output: 4 x 50W
• Pre-output voltage: 4V/10KΩ
• Speaker impedance: 4-8Ω
• AUX inputs for left and right channels
• High-quality audio output with multiple speaker configuration options

Video in/out

• Reverse camera input
• Extra video input
• Dual video outputs for additional screens or devices

USB interface

• USB connection for Apple CarPlay & Android Auto
• Additional USB port for music or video playback

Other connections

• Antenna input
• Microphone input for enhanced hands-free communication

RCA cable connections

• Outputs for front, rear, and subwoofer speakers
• Parking brake and amplifier control connections
• UART connector for CAN bus integration

What’s included in the package

• 1 x Nakamichi head unit with fascia
• 1 x Main wiring harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables
  Note: The package may vary slightly depending on the car model. Any variation is normal.

Specifications

• Display size: 10" TFT
• Resolution: 1240×600
• Brightness: 500nit
• Operating voltage: 14.4V (range: 10.5-16V)
• USB output: 5±0.25V/1A
• Supported video formats: H264, MP4, AVI, MKV, FLV
• Supported audio formats: MP3, APE, AAC, FLAC
