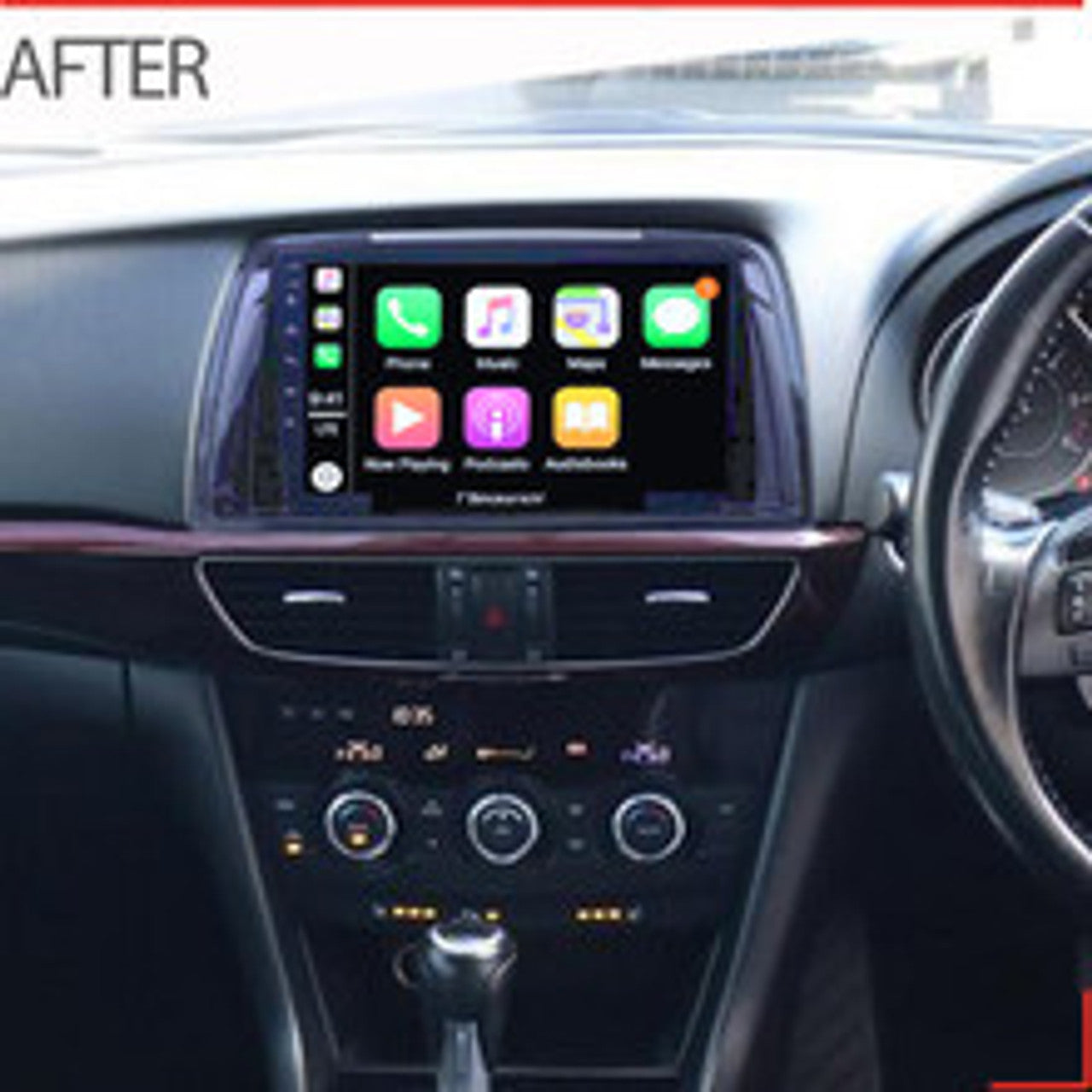

Nakamichi Wireless Apple CarPlay & Android Auto Solution Compatible with Mazda 6 2013

Compatibility:

• For Mazda 6 2013.

Important Information

• Compatible with Steering Wheel Controls.

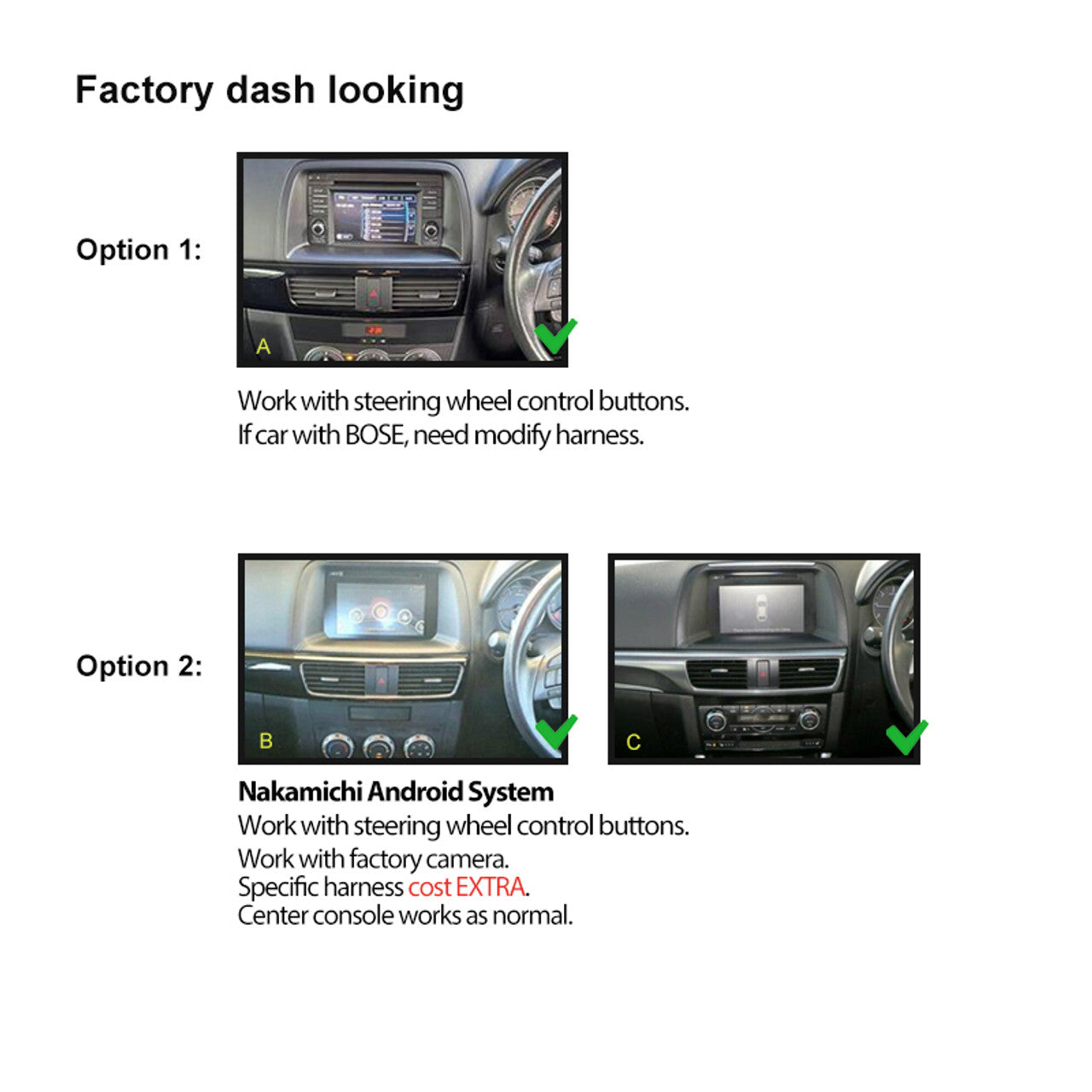

• For Option 1, if the car has a BOSE system, a harness modification is required.
• For Option 2 with a factory screen, extra cost for harness applies. Works with the factory camera. If the car has a BOSE system, a harness modification is needed. Not compatible with the factory USB.
• The center console works as normal.
• Please send a photo of your dashboard with the car’s year and model when purchasing, so we can provide the correct compatible harness.

Key Features
Wireless Apple CarPlay

• The ultimate co-pilot. Enjoy CarPlay without cables. CarPlay is a smarter, safer way to use your iPhone while driving. You can get directions, make calls, send and receive messages, and enjoy your favorite music—all on your car's built-in display. iOS also introduces new app categories and customizable wallpapers for your CarPlay Dashboard.

Wireless Android Auto (wired for some specific phone brands)

• Pair your phone without cables and hit the road. Pair your phone to the car display, and your Android apps will show up onscreen. Tap to get driving directions, send a text, or make a hands-free call. Android Auto helps you focus on the road while making your drive enjoyable. Just plug in and go!

Bluetooth

• Communication system: BT 5.0 + EDR
• Frequency band: 2.4GHz
• Max range: 5m

Radio

• FM frequency: 87.5-108.0 MHz
• AM frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio

• Max power: 4×50W
• Pre-output (V): 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker impedance: 4-8Ω
• AUX-L (back of the unit)
• AUX-R (back of the unit)

Video

• Reverse camera video input (R-CAM, back of the unit)
• Extra video input (V-IN, back of the unit)
• Video output 1 (V-OUT1, back of the unit)
• Video output 2 (V-OUT2, back of the unit)

USB Interface

• CP/AA: USB connection for CarPlay/Android Auto (back of the unit)
• USB: USB connection for music or video (back of the unit)

Other Inputs at Back of the Unit

• ANT: Radio antenna input
• MIC: Microphone input

RCA Cable

• FL_OUT: Front left speaker output
• FR_OUT: Front right speaker output
• RL_OUT: Rear left speaker output
• RR_OUT: Rear right speaker output
• SUB_OUT: Subwoofer output
• UART_RX/UART_TX: Canbus connector
• PARK: Parking brake
• AMP: Amplifier control

What’s Included in the Package

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables
  Note: For different car models, the accessory package may vary. It's normal if the contents are not exactly the same as listed.

General Specifications

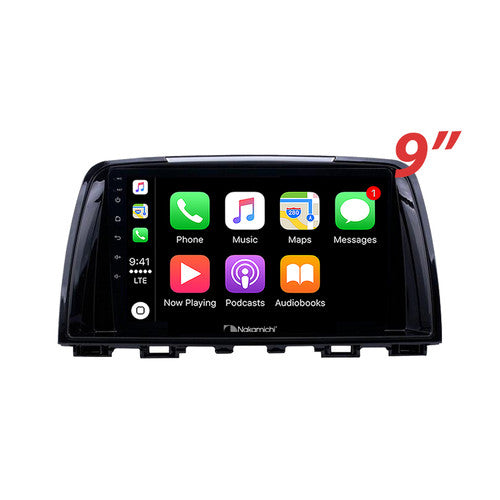

• TFT screen size: 9"
• Display resolution: 1240×600
• Contrast ratio: 500
• Brightness: 500 nit
• Operating voltage: 14.4V (range: 10.5-16V)
• USB readable/chargeable: 5±0.25V/1A
• Video format support: H264/MP4/AVI/MKV/FLV
