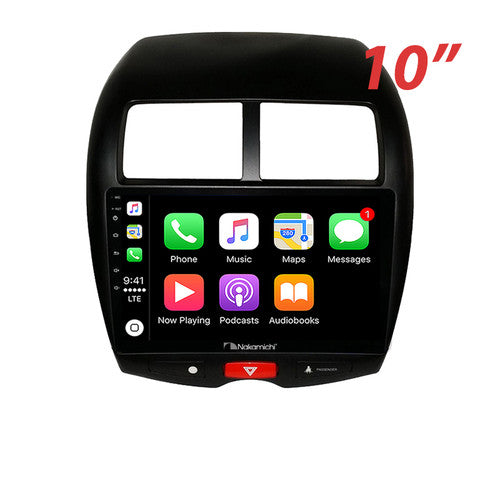

Nakamichi Wireless Apple CarPlay & Android Auto System for Mitsubishi ASX 2010-2017

Compatibility:

• For Mitsubishi ASX 2010-2017.

Important information

• Supports steering wheel controls.

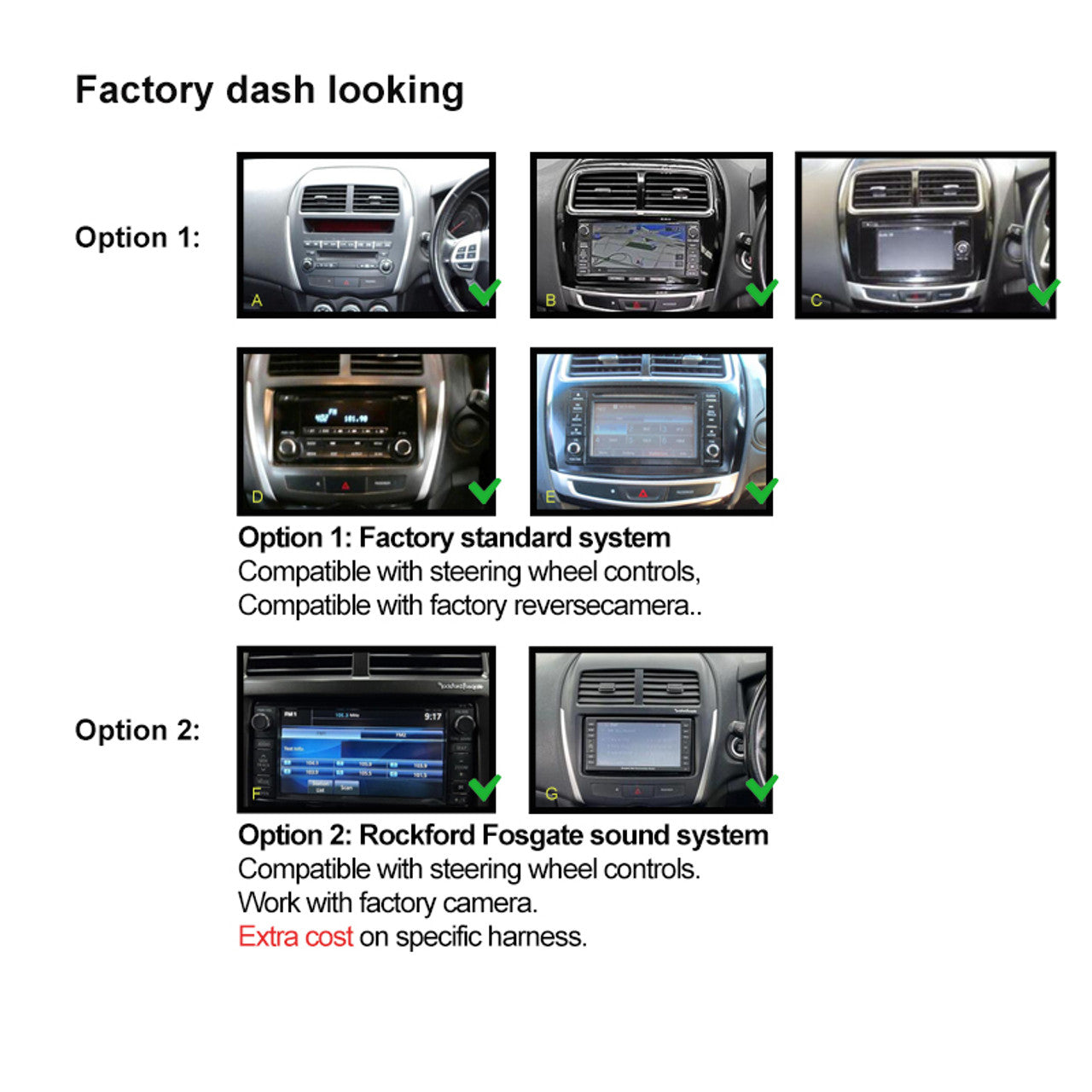

• Option 1: Factory standard system, works with factory reverse camera.
• Option 2: Factory Rockford Fosgate sound system, works with factory reverse camera (extra cost for specific harness).
• Please send a photo of your dashboard along with your vehicle's year and model after purchasing so we can provide the correct harness.

Key features
Wireless Apple CarPlay
Enjoy the ultimate co-pilot experience with CarPlay, wirelessly! Apple CarPlay provides a safer, smarter way to use your iPhone while driving. Get directions, make calls, send messages, and enjoy music—all on your car's built-in display. With iOS, CarPlay offers new app categories and customizable wallpapers for your CarPlay dashboard.

Wireless Android Auto
Wirelessly connect your Android phone to your car display, and enjoy the ease of navigation, hands-free calling, text messaging, and more. Some phone brands may require a wired connection. Android Auto keeps you focused on the road while still offering entertainment.

Bluetooth 5.0
Equipped with Bluetooth (5.0 + EDR) for seamless communication with a 5-meter range on the 2.4GHz frequency band.

Radio

• FM frequency: 87.5-108.0MHz
• AM frequency: 522-1620KHz
• 18 FM and 12 AM preset stations

Audio performance

• Max power output: 4 x 50W
• Pre-output voltage: 4V/10KΩ
• Speaker impedance: 4-8Ω
• AUX inputs for left and right channels
• High-quality audio output with multiple speaker configuration options

Video in/out

• Reverse camera video input
• Extra video input
• Dual video outputs for additional screens or devices

USB interface

• USB connection for Apple CarPlay & Android Auto
• Additional USB port for music or video playback

Other connections

• Antenna input
• Microphone input for better hands-free experience

RCA cable connections

• Outputs for front, rear, and subwoofer speakers
• Parking brake and amplifier control connections
• UART connector for CAN bus integration

What’s included in the package

• 1 x Nakamichi head unit with fascia
• 1 x Main wiring harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables
  Note: The package may vary slightly depending on the car model. Any variation is normal.

Specifications

• Display size: 10" TFT
• Resolution: 1240×600
• Brightness: 500nit
• Operating voltage: 14.4V (range: 10.5-16V)
• USB output: 5±0.25V/1A
• Supported video formats: H264, MP4, AVI, MKV, FLV
• Supported audio formats: MP3, APE, AAC, FLAC
